Valve F82B-LCD Automatic Softener Valve with LCD Display (up to 4 m³/h)
Description ...

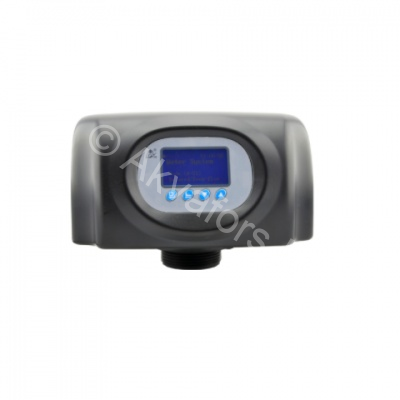

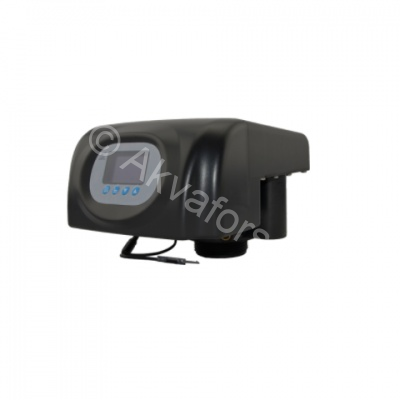

⚙️ Runxin F82B-LCD — Automatic Softener Valve with LCD Display (up to 4 m³/h)
Application
Runxin F82B-LCD is an automatic control valve designed for water softening systems in residential and commercial applications. It manages all filtration and regeneration stages for reliable water treatment.
⚙️ Key Features
✅ 5 modes: filtration, backwash, regeneration, rinse, brine tank refill
✅ Programmable by time or volume
✅ Durable ceramic seal
✅ Top-mount 2.5" tank thread
✅ LCD display with current mode status
✅ Auto keyboard lock during idle time
✅ Output signals for pump or system control
✅ Supports co-current and counter-current regeneration
✅ Option to mix raw water for adjustable hardness
✅ Alerts for salt shortage and long power downtime
⚙️ Technical Specifications
-
Flow rate: up to 4 m³/h
-
Inlet/outlet: 1" (female thread)
-
Drain: 1/2" (male thread)
-
Brine line: 3/8" (male thread)
-
Operating pressure: 0.15–0.6 MPa
-
Temperature: +5°C to +50°C
-
Power supply: 12 V / 50–60 Hz
-
Compatible tank size: 6" to 18"
-
Housing material: composite
-
Dimensions (L×W×H): 356×220×249 mm
-
Weight: 5 kg
Package Includes
✔️ Runxin F82B-LCD valve
✔️ Connection kit
✔️ User manual
