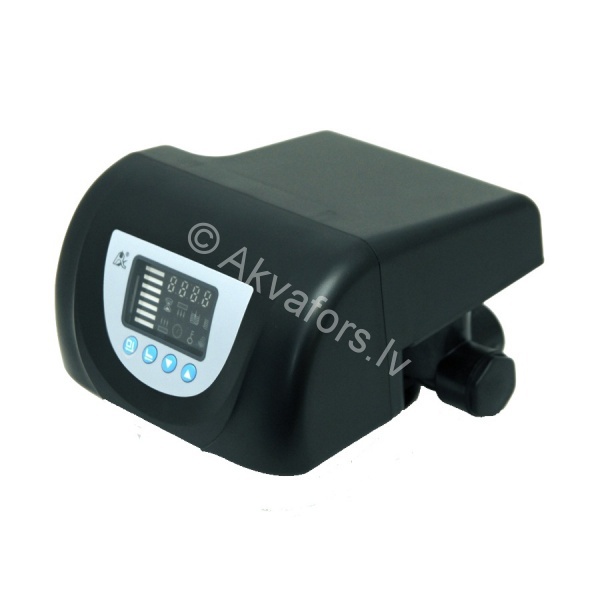

Runxin F69A3 — Automatic Control Valve for Water Softening and Filtration (up to 2 m³/h)

✅ Reliable disk-based design
✅ Bottom-to-top regeneration
✅ Color LED display for operation modes
✅ Keypad lock during inactivity
✅ Auxiliary equipment connection (pumps, solenoid valves)
✅ Ability to set the number of backwashes based on water turbidity
✅ Memory retention for up to 3 days during power outages
✅ Input port for control signal
✅ Ability to link multiple valves into one system
✅ Top distributor (slotted cap) included in the kit
Description ...

98.39 Ls
Compare products

⚙️ Runxin F69A3 — Automatic Control Valve for Water Softening and Filtration (up to 2 m³/h)

Application

Runxin F69A3 is an automatic control valve with an electronic timer and built-in flow meter designed for water softening and filtration systems. It automatically switches between operation modes based on preset time and the volume of treated water.


⚙️ Key Features

✅ Reliable disk-based design
✅ Bottom-to-top regeneration
✅ Color LED display for operation modes
✅ Keypad lock during inactivity
✅ Auxiliary equipment connection (pumps, solenoid valves)
✅ Ability to set the number of backwashes based on water turbidity
✅ Memory retention for up to 3 days during power outages
✅ Input port for control signal
✅ Ability to link multiple valves into one system
✅ Top distributor (slotted cap) included in the kit


⚙️ Technical Specifications

  • ✔️ Flow rate: up to 2 m³/h

  • ✔️ Inlet/outlet: 3/4" (male thread)

  • ✔️ Drain: 1/2" (male thread)

  • ✔️ Brine line: 3/8"

  • ✔️ Mounting size: 2.5" - 8NPSM

  • ✔️ Riser pipe: 1.05" (26.7 mm)

  • ✔️ Working pressure: 1.5–6 bar

  • ✔️ Water temperature: +5°C to +50°C

  • ✔️ Power supply: AC100–240V / 50–60Hz → DC12V / 1.5A

  • ✔️ Housing material: composite

  • ✔️ Weight: 2.5 kg

  • ✔️ Dimensions: 188×196×152 mm


Package Includes

✔️ Runxin F69A3 valve
✔️ Connection kit
✔️ User manual
