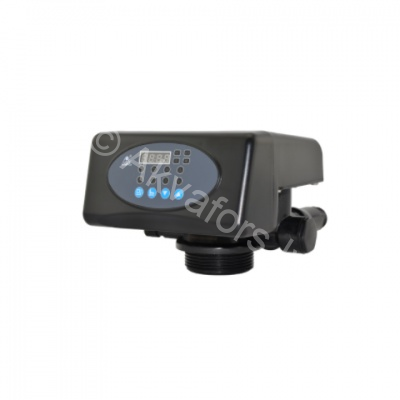

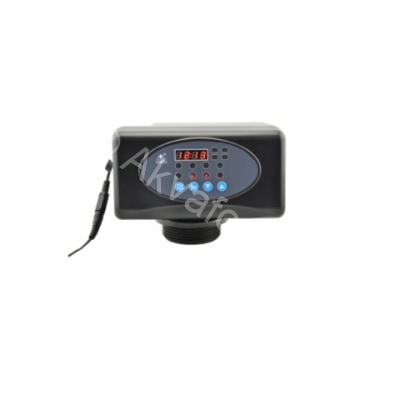

⚙️ Runxin F69P3 — Automatic Softener Valve (up to 2 m³/h)

Application

Runxin F69P3 is an automatic five-mode valve for water softening systems used in residential and commercial applications. Manages the full regeneration cycle and includes a built-in bypass for service ease.

⚙️ Key Features

✅ 5 modes: filtration, backwash, regeneration, rinse, brine tank refill
✅ Long-lasting ceramic sealing
✅ Top-mount design, fits 2.5" tank thread
✅ Built-in bypass valve
✅ Programmable by time or volume

⚙️ Technical Specifications

• Flow rate: up to 2 m³/h

• Inlet/outlet: 3/4" (female thread)

• Drain: 1/2" (male thread)

• Brine line: 3/8" (male thread)

• Operating pressure: 0.15–0.6 MPa

• Temperature: +5°C to +50°C

• Power supply: 100–240 V / 50–60 Hz

• Compatible tank size: 6" to 12"

Package Includes

✔️ Runxin F69P3 valve
✔️ Connection kit
✔️ User manual
