Valve F74Q3 Automatic Water Softener Valve (up to 10 m³/h)

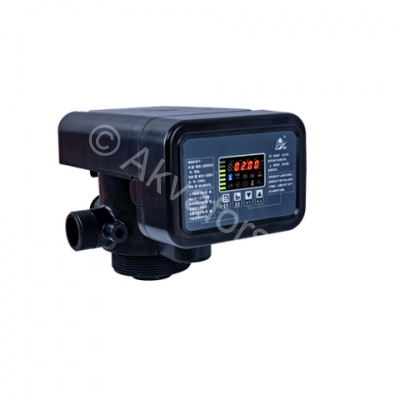

⚙️ Runxin F74Q3 — Automatic Water Softener Valve (up to 10 m³/h)

Application

Runxin F74Q3 is an automatic control valve designed for water softening systems in residential and commercial environments. It efficiently manages filtration and regeneration stages for continuous and reliable water treatment.

⚙️ Key Features

✅ 5 modes: filtration, backwash, regeneration, rinse, brine tank refill
✅ Programmable by time or water volume
✅ Durable ceramic seal
✅ Top-mounted with 4" tank thread
✅ LED screen indicating active operating mode
✅ Keyboard lock function during inactivity
✅ Output signals for pump or system integration

⚙️ Technical Specifications

• Flow rate: up to 10 m³/h

• Inlet/outlet: 2" (female thread)

• Drain: 1" (male thread)

• Brine line: 1/2" (male thread)

• Pressure: up to 6.0 bar

• Temperature: +5°C to +50°C

• Power supply: 12 V, 50/60 Hz

• Tank compatibility: 16" to 30"

• Housing material: composite

• Dimensions (L×W×H): 356×220×249 mm

• Weight: 5 kg

Package Includes

✔️ Runxin F74Q3 valve
✔️ Connection kit
✔️ User manual
