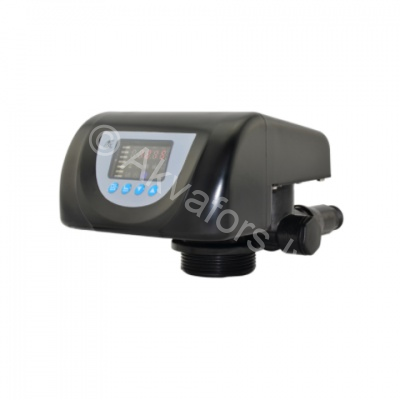

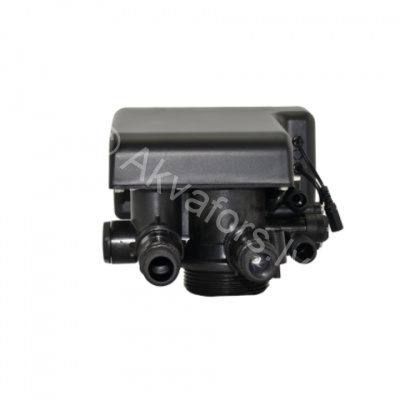

Valve Runxin F69AY3 (automatic for soft flow type with water pass) 2T/H

Automatic softener valve with integrated bypass. 5 modes. Flow up to 2 m³/h. 3/4" ports, pressure up to 0.6 MPa.
Description ...

163.00 €
Compare products

⚙️ Runxin F69AY3 — Automatic Softener Valve (up to 2 m³/h)

Application

Runxin F69AY3 is an automatic multi-function valve for water softening systems in residential and commercial setups. Manages all regeneration stages and includes a built-in bypass for easier service.


⚙️ Key Features

✅ 5 operating modes: filtration, backwash, regeneration, rinse, brine fill
✅ Ceramic sealing for long-term durability
✅ Top-mount for 2.5" tank thread
✅ Integrated bypass
✅ Programmable by time or volume


⚙️ Technical Specifications

  • Flow rate: up to 2 m³/h

  • Inlet/outlet: 3/4" (female thread)

  • Drain: 1/2" (male thread)

  • Brine line: 3/8" (male thread)

  • Pressure: 0.15–0.6 MPa

  • Temperature: +5°C to +50°C

  • Power: 100–240 V / 50–60 Hz

  • Tank size: 6" to 12"


Package Includes

✔️ Runxin F69AY3 valve
✔️ Connection kit
✔️ User manual
