Valve F75Q1 Automatic Filtration Valve (up to 10 m³/h)

Automatic filtration valve for loose-media filters. Up to 10 m³/h, 2" ports, time-based control, 24 V power, LED interface.
Description ...

275.00 €
Compare products

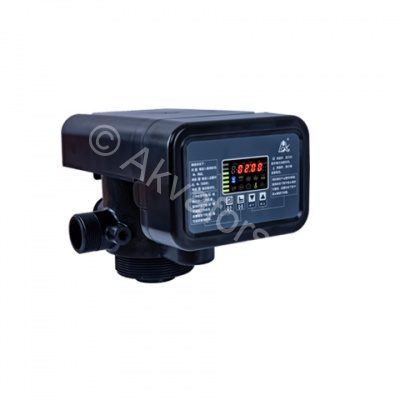

⚙️ Runxin F75Q1 — Automatic Filtration Valve (up to 10 m³/h)

Application

Runxin F75Q1 is an automatic control valve with a timer, designed for loose-media water treatment filters. It provides precise and consistent control over filtration and regeneration cycles.

⚙️ Key Features

✅ 5 modes: filtration, backwash, regeneration, rinse, brine tank refill
✅ Time-based programming
✅ Durable ceramic sealing
✅ Top-mount 4" tank thread
✅ LED screen shows current operation mode
✅ Auto keyboard lock during inactivity
✅ Signal outputs for pump or control systems

⚙️ Technical Specifications

  • Flow rate: up to 10 m³/h

  • Inlet/outlet: 2" (female thread)

  • Drain: 2" (male thread)

  • Brine line: 1/2" (male thread)

  • Operating pressure: up to 6.0 bar

  • Temperature: +5°C to +50°C

  • Power supply: 24 V / 50–60 Hz

  • Tank compatibility: 16" to 30"

  • Housing material: composite

  • Dimensions (L×W×H): 347×220×231 mm

  • Weight: 5 kg

Package Includes

✔️ Runxin F75Q1 valve
✔️ Connection kit
✔️ User manual
