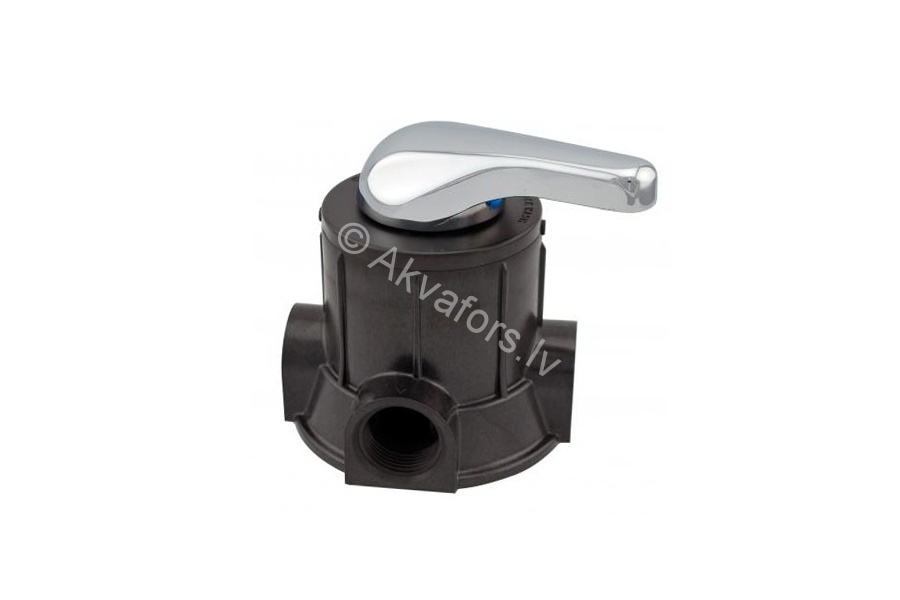

Runxin F56A1 — Manual Control Valve for Filtration (up to 4 m³/h)

The Runxin F56A1 manual control valve with metal handle is designed for non-reagent wash filters.
Description ...

17.57 Ls
Compare products

⚙️ Runxin F56A1 — Manual Control Valve for Filtration (up to 4 m³/h)

Application

Runxin F56A1 is a manual control valve designed for water filtration systems, such as activated carbon and sand filters. It allows switching between filtration, backwash, and fast rinse modes.


⚙️ Key Features

✅ Simple and reliable disk design
✅ Manual operation of working modes
✅ Suitable for filters with 6"–12" diameter
✅ Compact and lightweight design
✅ High corrosion resistance
✅ Easy installation and maintenance


⚙️ Technical Specifications

  • ✔️ Flow rate: up to 4 m³/h

  • ✔️ Connections: 1" (female thread)

  • ✔️ Drain: 1" (female thread)

  • ✔️ Mounting size: 2.5" - 8NPSM

  • ✔️ Riser pipe: 1.05" (26.7 mm)

  • ✔️ Working pressure: 0.15–0.6 MPa

  • ✔️ Water temperature: +5°C to +50°C

  • ✔️ Body material: plastic with ceramic elements

  • ✔️ Weight: 2 kg


Package Includes

✔️ Runxin F56A1 valve
✔️ Connection kit
✔️ User manual
