Valve Runxin F68C3/F70A (automatic for soft flow type with by-pass ) 4.5 T/H
Description ...

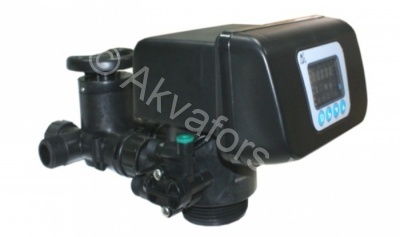

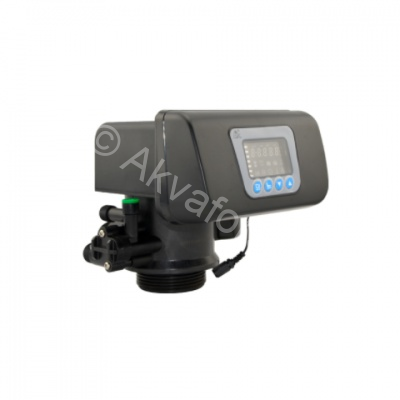

⚙️ Runxin F68C3F70A — Automatic Softener Valve (up to 4.5 m³/h)
Application
Runxin F68C3F70A is an automatic five-mode valve designed for water softening systems in residential and commercial applications. It features integrated bypass and covers all key softening cycles.
⚙️ Key Features
✅ 5 modes: filtration, backwash, regeneration, rinse, brine refill
✅ Durable ceramic sealing
✅ Top-mount (2.5" thread)
✅ Built-in bypass for easy maintenance
✅ Programmable by time or water usage
⚙️ Technical Specifications
-
Flow rate: up to 4.5 m³/h
-
Inlet/outlet: 1" (female thread)
-
Drain: 1/2" (male thread)
-
Brine line: 3/8" (male thread)
-
Operating pressure: 0.15–0.6 MPa
-
Temperature: +5°C to +50°C
-
Power: 100–240 V / 50–60 Hz
-
Tank compatibility: 6" to 12"
Package Includes
✔️ Runxin F68C3F70A valve
✔️ Connection kit
✔️ User manual
