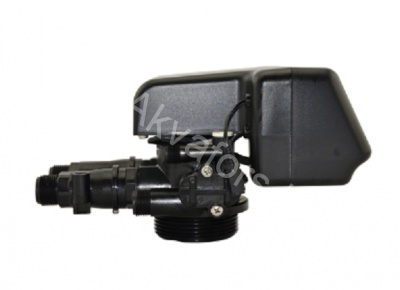

Valve F65B3 Automatic Softener Valve (up to 2 m³/h)

⚙️ Runxin F65B3 — Automatic Softener Valve (up to 2 m³/h)

Application

Runxin F65B3 is an automatic five-mode valve for managing water softening systems in homes and small commercial setups. Controls all softening stages and features a built-in bypass for easy servicing.

⚙️ Key Features

✅ Fully automatic operation (time/volume)
✅ 5 modes: filter, backwash, regeneration, rinse, brine fill
✅ Ceramic sealing surface
✅ Top-mounted, 2.5" tank thread
✅ Integrated bypass valve

⚙️ Technical Specifications

• Flow rate: up to 2 m³/h

• Inlet/outlet: 3/4" (female thread)

• Drain: 1/2" (male thread)

• Brine line: 3/8" (male thread)

• Pressure: 0.15–0.6 MPa

• Water temperature: +5°C to +50°C

• Power: 100–240 V / 50–60 Hz

• Tank compatibility: 6"–12" diameter

Package Includes

✔️ Runxin F65B3 valve
✔️ Connection kit
✔️ User manual
