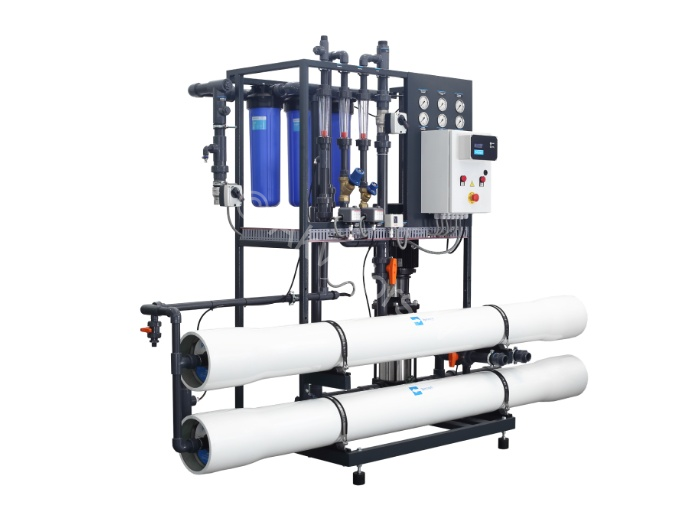

Ecosoft RO system MO4 (4m3/h) universal, without membrane

Ecosoft MO4 industrial reverse osmosis system is a turnkey solution for industrial water challenges, that includes pilot studies, engineering and manufacturing, commissioning and maintenance.
Ecosoft reverse osmosis systems are used in food and pharmaceutical industry, energy, chemical, semiconductor manufacturing, steam boilers and other industrial applications.

- Energy efficiency with Grundfos pump
- Reliable performance with quality components and engineering
- Individual project evaluation per request
- ISO 9001 certified factory
- CE marked and confirmed to be safe in accordance with EC New Approach Directives
Description ...

11487.00 €
Compare products

Technical Characteristics

Size and weight

МО4
Dimensions, H×W×D:
1950×2700×1100
 mm
Filter weight
440
 kg
Equipment
  • Grundfos® CR 10-12 high pressure pump — 1 pcs
  • 8040-2 membrane vessel — 2 pcs
  • BB20 sediment prefilter — 3 pcs
  • Motorized valves (feed water in, flush out) — 2 pcs
  • Balancing valves (concentrate reject, concentrate recycle) — 2 pcs
  • Electrical cabinet with Ecosoft controller — 1 set
  • Piping, instrumentation, steel frame — 1 set

Options

  • Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
  • Dosing pump for antiscalant or other RO chemicals
  • Permeate inlet for permeate membrane rinse
  • Raw water blending line

Сonnections

  • Influent water — 1½″
  • Permeate — 1″
  • Concentrate — 1½″
  • CIP inlet — 1½″
  • CIP return — 1½″
  • CIP permeate — ½″
  • Antiscalant dosing port — ½″

Technical data

  • Permeate capacity¹ — 4 m³/h
  • Permeate recovery² — 75%
  • Maximum TDS — 3000 mg/L
  • Influent flow demand:
    - 5,5…8 m³/h (service)
    - 10 m³/h (rinse)
  • Operating pressure — 8…12 bar
  • Maximum pressure — 14 bar
  • Electrical requirements — 380...400 V, 50 Hz (3 ph)
  • Electrical power — 4 kW
  • Prefilter rating — 5 μm
    ¹ depends on feed water TDS, temperature, and permeate recovery
    ² for low scaling/fouling water

Feed water requirements

  • TDS — 3000 mg/L
  • hardness — 150 mg/L CaCO₃
  • iron — 0.1 mg/L
  • manganese — 0.05 mg/L
  • hydrogen sulfide — none
  • silicate — 20 mg/L
  • residual chlorine — 0.1 mg/L
  • SDI — 5
  • chemical oxygen demand - 4 mg/L O₂
