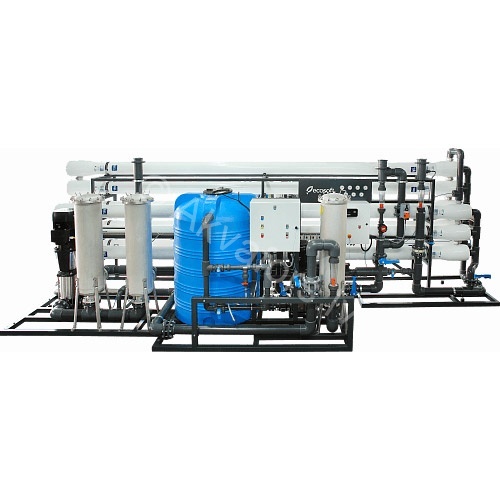

Ecosoft МО 36 8" RO System without membrane

Ecosoft MO 36 industrial reverse osmosis system is a turnkey solution for industrial water challenges, that includes pilot studies, engineering and manufacturing, commissioning and maintenance.
Ecosoft reverse osmosis systems are used in food and pharmaceutical industry, energy, chemical, semiconductor manufacturing, steam boilers and other industrial applications.

- Energy efficiency with Grundfos pump
- Reliable performance with quality components and engineering
- Individual project evaluation per request
- ISO 9001 certified factory
- CE marked and confirmed to be safe in accordance with EC New Approach Directives
Description ...

65367.00 €

Compare products

Technical Characteristics

Size and weight

Dimensions, H×W×D:

2100 × 7000 × 2500

Filter weight

1700

Grundfos® CR 45-4-2 high-pressure pump — 1 pc
8040-6 membrane vessels — 6 pcs
Stainless steel housing with 7 PP 2,5 × 40″ filter — 2 pcs
Motorized feed water in, flush out butterfly valves — 2 pcs
Balancing concentrate reject, concentrate recycle valves — 2 pcs
Electrical cabinet with Ecosoft controller — 1 set
Piping, instrumentation — 1 set
Steel frame — 1 set

Options

Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
Dosing pump for antiscalant or other RO chemicals
Permeate inlet for permeate membrane rinse
Raw water blending line

Сonnections

Influent water — DN100 (flange)
Permeate — DN80 (flange)
Concentrate — DN100 (flange)
CIP inlet — DN80 (flange)
CIP return — DN80 (flange)

Technical data

Permeate capacity¹ — 36 m³/h
Permeate recovery² — 75%
Maximum TDS — 3000 mg/L
Influent flow demand — 50…60 m³/h (service)
Operating pressure — 8…12 bar
Maximum pressure — 14 bar
Electrical requirements — 380...400 V, 50 Hz (3 ph)
Electrical power — 22 kW
Prefilter rating — 5 μm
¹ depends on feed water TDS, temperature, and permeate recovery
² for low scaling/fouling water
