Water filter Cintropur SL 240 TRIO-CTN 3/4" SMART LINE FWCCNW24TRIOCTN

3-function compact water filter: 2 sleeve filters (100 µm and 25 µm) and 1 activated carbon filter to improve the taste and eliminate the odours. Flow rate of 0.5 m³/h.

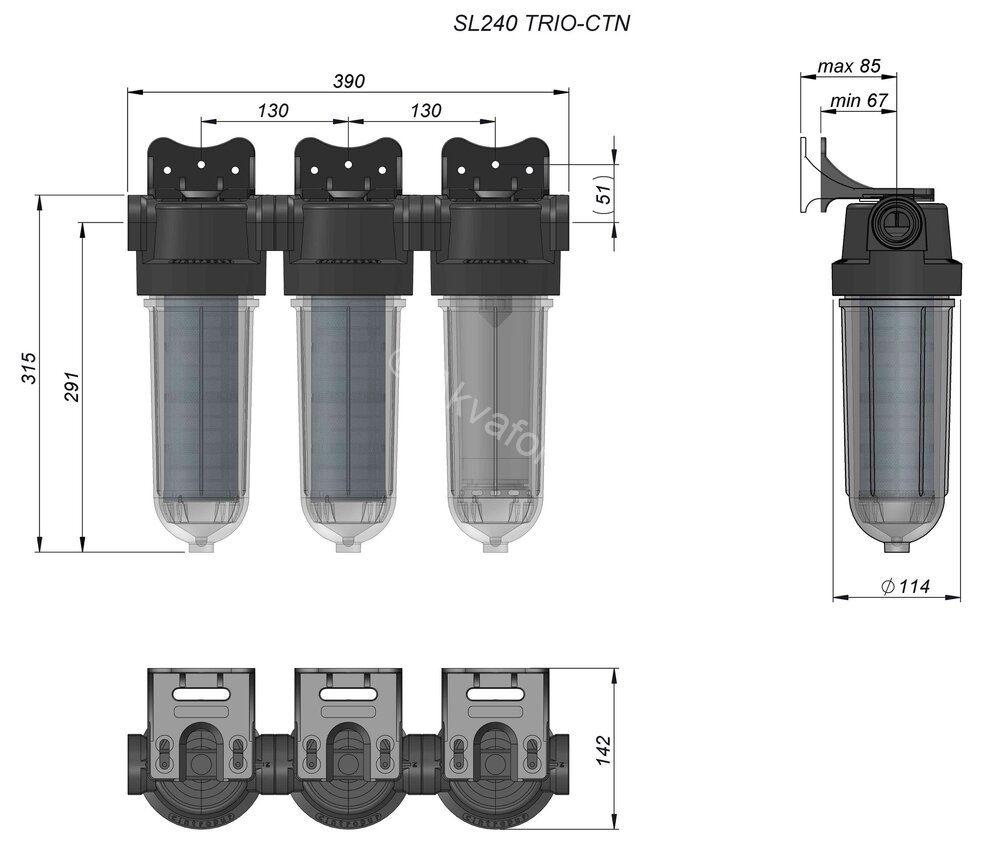

Filtertyp: SL240 TRIO-CTN
- Anschlüsse: ¾ Zoll
- Durchfluss: 0,5 m³/h bei 0,2 bar deltaP
- Betriebsdruck: 8 bar, max. Druck: 12 bar
- Max. Betriebstemperatur: 50°C
- Filterkopf: Glasfaser verstärktes Polypropylen (PP)
- Filterglocke: StyreneAcrylonitrile(SAN)
- O’Ring: Nitril Butadien Rubber (NBR)
- Filterschlüssel: ABS
- Filterstützkorb: PP + 20% GF
- Zentrifuge und Abschlussdeckel: Polyethylen (PE)
- Filtervliese: Polyester (nicht waschbar) oder Nylon (waschbar)
- Filterfläche + Volumen: 440cm² mit Vliesen + 0.57L mit Aktivkohle
CTN-Aktivkohlekartusche: SAN 0.6mm + PP mit 20% GF (Abschlussdeckel) 0.3mm
- Serienmäßige Ausstattung: Filterfliese 100?m + 25 Mikron, mit Aktivkohle befüllte CTN-Kartusche, Schlüssel, 2 Wandbefestigungen aus
PP + 30% GF
- Sonstige verfügbare Feinheiten: Nicht waschbar: 1 –5 –10 –25 –50 –100 Mikron Waschbar: 150 –300 Mikron
Description ...

187.90 €

Compare products

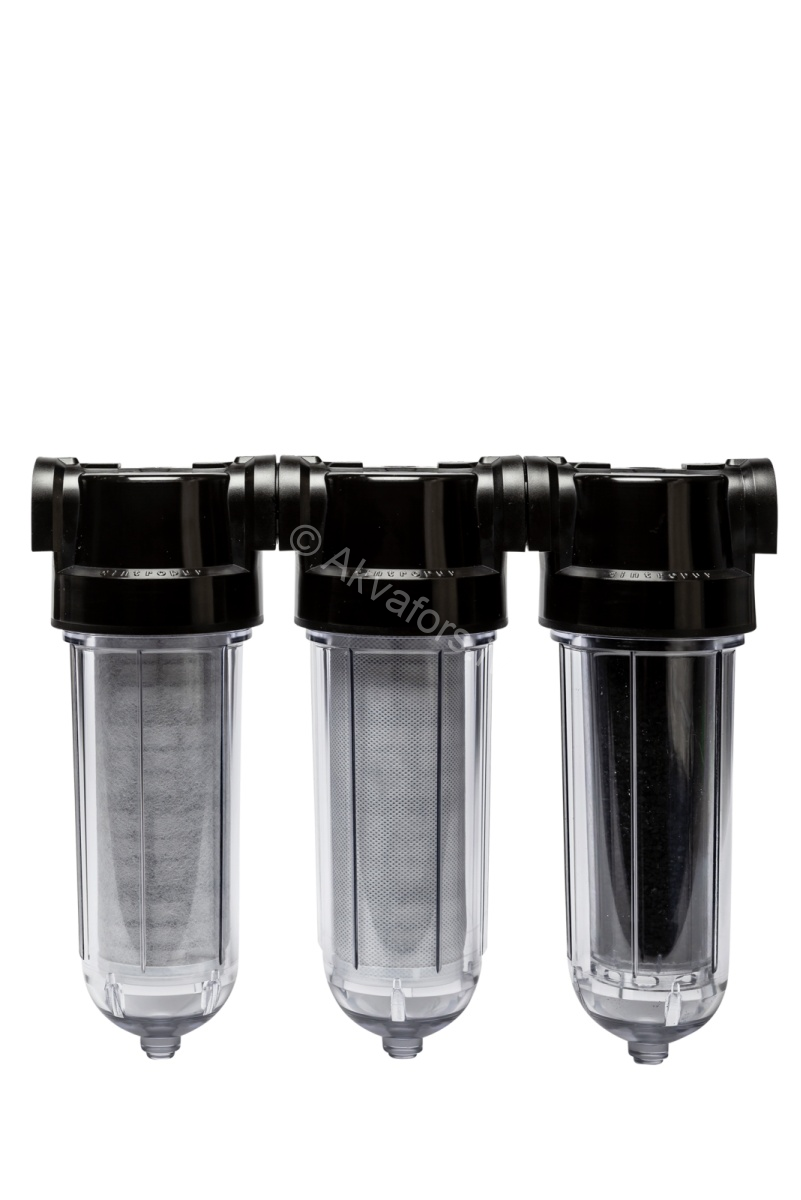

Cintropur SL240 TRIO-CTN triplex filtration system

The Cintropur SL 240 TRIO-CTN triplex filtration system from the new Smart Line range offers a filtration concept in three successive stages to remove sediments and purify water.
The first 100 μ sleeve filter is to remove solid particles up to 100 microns.
The second filter with a 25 μ sleeve purifies the previously refined water, retaining particles up to 25 microns.
The third filter has the container filled with active carbon, for improving aromas, eliminating odors, reducing chlorine, ozone and micro-pollutants, such as pesticides and other dissolved organic substances. Made entirely of first quality synthetic material, CINTROPUR® filters are perfectly suited for the food sector and drinking water filtration.

Available variants:
- 3/4" connection (FWCCNW24TRIOCTN)
- 1" connection (FWCCNW24TRIOCTN1)

Functions of CINTROPUR household water filters:
The main function of household water filters is to retain all solid particles suspended in water (soil, sand, rust, etc.) .

The principle of application of CINTROPUR household filters :
Protection of household, collective and agricultural sanitary installations, for filtering solid particles (soil, sand, rust, etc.) suspended in water. The protection filter would ideally be installed at the entrance of the installation to ensure the protection of the accessories connected below.

Applications for CINTROPUR  household filters :
·  DOMESTIC  : protection of sanitary installations supplied with water from the public network, rainwater or well water; water filtration before using decalcification equipment, reverse osmosis systems or treatments with ultraviolet lamps.
·  INDUSTRY  : Protection of sanitary installations, production machines-tools and any industrial device for water treatment.
·  AGRICULTURE  : Filtering for the irrigation network, filtering rainwater and wells.

The advantages of using the  active carbon filter CINTROPUR  CTN +
1. The large volume of pores and its extensive exchange surface make this active carbon an excellent choice for improving aromas, eliminating odors, reducing chlorine, ozone and micro-pollutants, such as pesticides and other dissolved organic substances.
2. The significant amount of activated carbon used in  CINTROPUR  CTN filters guarantees optimal performance and lifetime. The lower the flow, the better the result.
3. The duration of a filter charge depends on the application: 3 months - 6 months are recommended.
4. Due to the internal mechanism of the filter, the contact time between water and activated carbon will be maximum, which guarantees the optimal efficiency of the treatment.
5. The guarantee of using one of the best active carbons on the market, with a very high  absorption power .
