Valve F79B-LCD/70D Automatic Softener Valve with Bypass (up to 2 m³/h)
Description ...

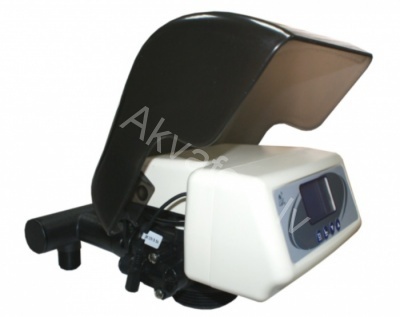

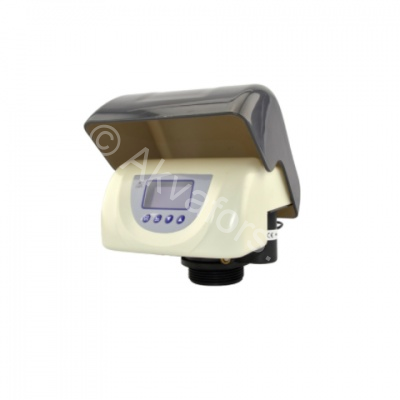

⚙️ Runxin F79B-LCD70D — Automatic Softener Valve with Bypass (up to 2 m³/h)
Application
Runxin F79B-LCD70D is an automatic control valve designed for water softening systems in residential and commercial settings. It manages all essential filtration and regeneration cycles.
⚙️ Key Features
✅ 5 modes: filtration, backwash, regeneration, rinse, brine tank refill
✅ Programmable by time or volume
✅ Durable ceramic seal
✅ Top-mount connection (2.5" thread)
✅ LCD display with live status
✅ Keyboard lock function during idle state
✅ Output signals for pumps or external systems
✅ Integrated F70D bypass ensures water delivery during regeneration
✅ Supports co-current and counter-current regeneration
⚙️ Technical Specifications
-
Flow rate: up to 2 m³/h
-
Inlet/outlet: 3/4" (female thread)
-
Drain: 1/2" (male thread)
-
Brine line: 3/8" (male thread)
-
Operating pressure: 0.15–0.6 MPa
-
Water temperature: +5°C to +50°C
-
Power supply: 12 V / 50–60 Hz
-
Compatible tank size: 6" to 12"
-
Housing material: composite
-
Dimensions (L×W×H): 356×220×249 mm
-
Weight: 5 kg
Package Includes
✔️ Runxin F79B-LCD70D valve
✔️ F70D bypass valve
✔️ Connection kit
✔️ User manual
