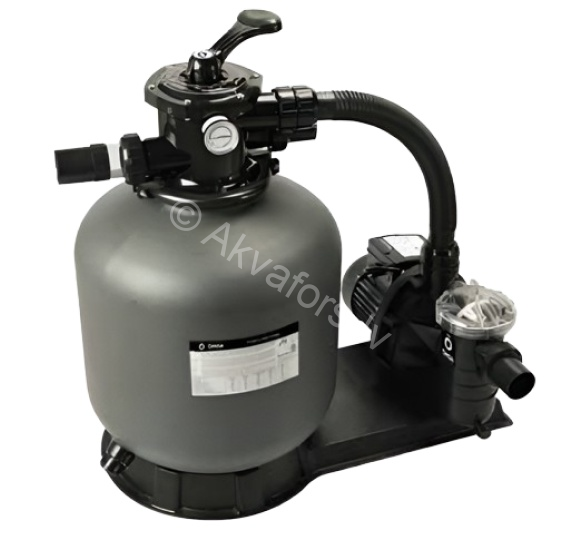

Onda Filtration Kit 15 m³/h
Base plate for pump and filter
Pump/filter connection supplied and mounted (diameter 50 mm)
4-way valve for top connection
Pressure gauge (bar)
Blow molded HDPE (high density polyethylene) filter
Operating pressure: 2.5 bar
Test pressure: 3.75 bar
2 Years tank warranty
6-Way valve included
Description ...
Pump/filter connection supplied and mounted (diameter 50 mm)
4-way valve for top connection
Pressure gauge (bar)
Blow molded HDPE (high density polyethylene) filter
Operating pressure: 2.5 bar
Test pressure: 3.75 bar
2 Years tank warranty
6-Way valve included
Description ...
682.00 €
Compare products
Filter capacity in m3/h at
Filter specifications
| 50 m3/h/m2 (backwash capacity) | 13.9 |
| 30 m3/h/m2 | 8.34 |
Filter specifications
| Connection dimension in F'' | 1''1/2 |
| Filter area in m2 | 0.30 |
| Height in mm (H) | 832 |
| Outer diameter (D) | 627-25'' |
| Weight in kg | 30 |
