Ecosoft membrane element EXLP-4040

Membrane elements Ecosoft EXLP-4040 extra low pressure membrane element for commercial use.
The EXLP membranes are manufactured with technology that provides continuous and reliable system operation.

‍
Description ...

174.99 €
Compare products
Parameters

Permeate Flow Rate: 9.8 m³/day
Operating pressure: 6.3 bar
Active Membrane Area: 9.3 m²
Stabilized Salt Rejection: 98 %

Weight & measurements

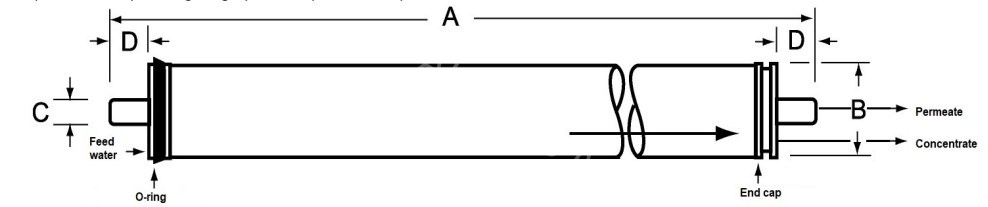

Dimensions, H×W×D: 1016 (A) x 99.7 (B) x 19.1 (C) mm
Filter weight: 3 kg


Specifications

Membrane type: spiral-wound element with polyamide thin-film composite

  • Active area: 9.3 m²
  • Operating pressure: 6.9 bar
  • Flow rate: 9.8 m³/day
  • Stabilized salt rejection: 98.0 %

* Permeate flow and salt (NaCl) rejection based on the following standard test conditions: 500 mg/L NaCl, 25 °C, permeate recovery as specified below. Flow rates for individual elements does not exceed ±20% of the nominal value.


Operating parameters

  • Maximum operating water temperature: 45 °C
  • Maximum operating pressure: 41 bar
  • Maximum element pressure drop: 1.0 bar
  • pH range, continuous operation: 3...10
  • pH range, short-term cleaning: 2...12
  • Maximum Feed Silt Density Index (SDI): 5
  • Free chlorine tolerance: < 0.1 mg/L
