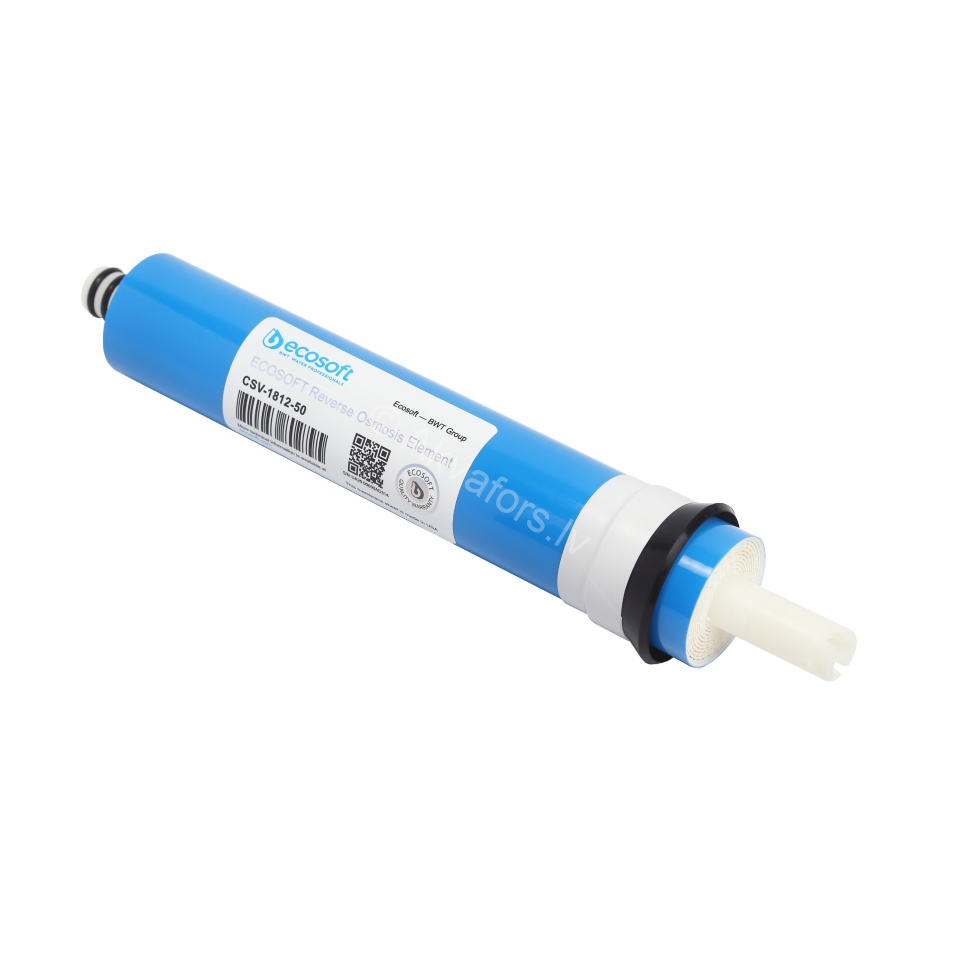

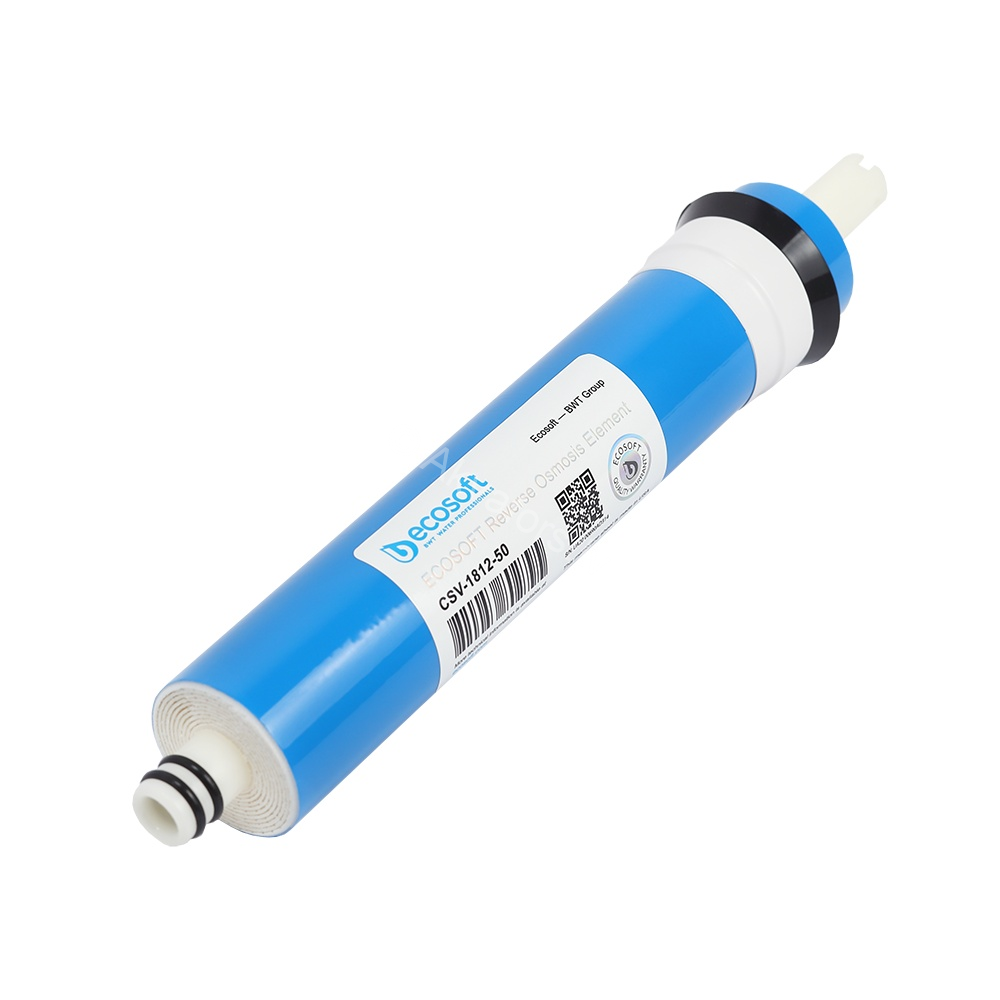

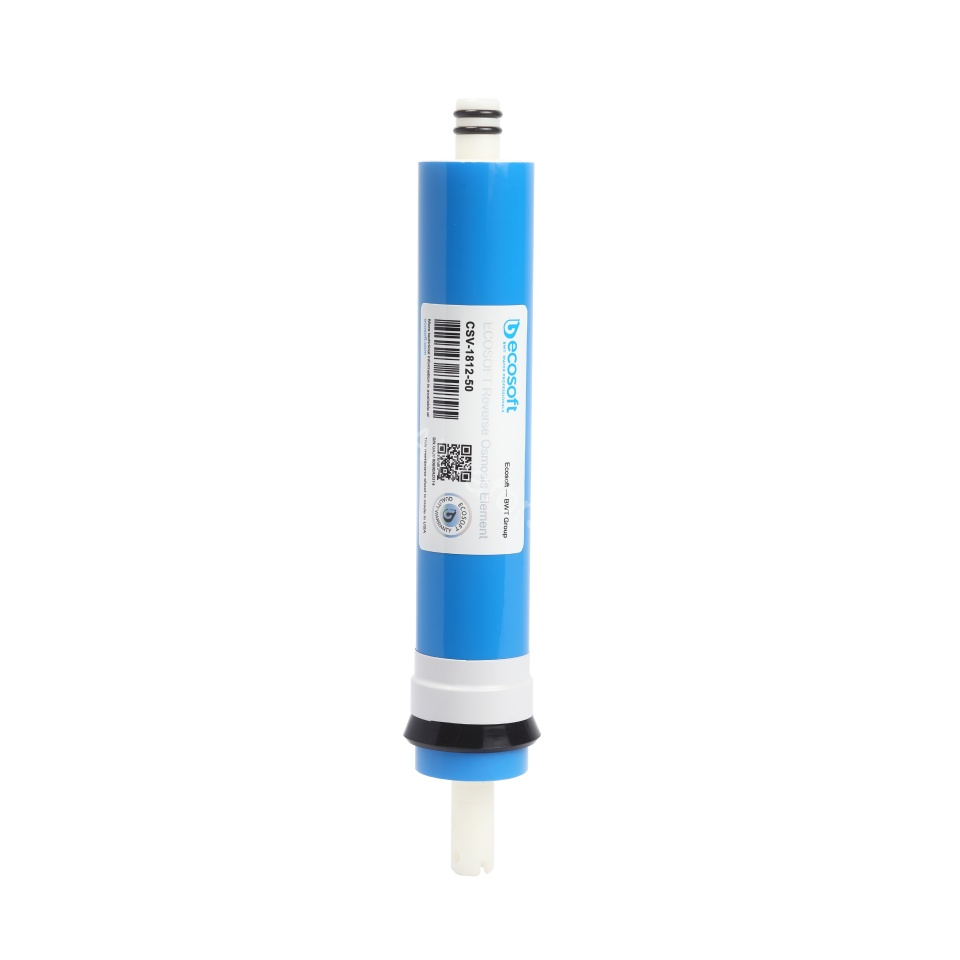

Ecosoft 50 GPD Membrane Element CSV181250ECO

Ecosoft membrane element is made to provide stable and high quality of purified drinking water.

The production of Ecosoft membrane elements is a highly effective process using the industry’s leading membrane flat sheet and the experience of the Ukrainian manufacturer

Full 7 L pressure tank in 54 minutes.
Full capacity even in 15 °C water.
High selectivity – 97%.
Individually vacuum tested.
Shipped dry.
Description ...

22.89 € 19.89 €
Compare products
Key features
  • Full 7 L pressure tank in 54 minutes
  • High selectivity - 97%
  • Full capacity even in 15 °C water
  • Individually vacuum tested
  • Shipped dry
​
Weight & measurements

Ecosoft 50 GPD membrane element
Dimensions, H×W×D: 297 x 45 x 45 mm



Specification

Membrane type — spiral-wound element with polyamide thin-film composite

  • Membrane element type — 50 GPD
  • Permeate volume — 7.9 L/hour
  • Stabilized salt rejection — 97.0 %
  • Applied pressure — 3.4 bar
  • Purpose — domestic

Operating parameters

  • Maximum operating water temperature — 45 °C
  • Maximum operating pressure — 3.4 bar
  • Maximum element pressure drop — 1.0 bar
  • pH range, continuous operation — 3...11
  • Maximum Feed Silt Density Index (SDI) — 5
  • Free chlorine tolerance < 0.1
