Akvafors SF 1252 Water Softener (softening, iron remover)

Aquafors SF 1252 solves several problems associated with the presence of hardness salts in water.
Water softening systems are based on a filter material - an ion exchange resin that is able to exchange ions with the solution. It traps pollutant ions.
Description ...

621.00 €

Compare products

Equipment characteristics:

Effectively softens, reduces iron, manganese and ammonium content in water
High quality ingredients
The service life of the filter is 5-7 years
Intended for summer houses, private houses, commercial establishments, etc
Automatic purification and regeneration after water consumption
Regeneration with salt tablets (NaCl)
A sewer connection is required. Rinsing water can be discharged into the Biological WWTP
Easy installation and operation
The device does not remove the smell. In addition, B520-12 or AERO equipment must be installed
Economical operation

WATER QUALITY PROBLEM

Hardness is a set of natural water properties associated with the concentration of alkaline earth metal salts, most often calcium and magnesium salts, in the water. Although hard water is not harmful to human health, it can pose a serious threat to various appliances, such as washing machines, boilers, dishwashers and pipes, by settling in it as scale. When using such water for laundry, a larger amount of detergent is required. Hardness will reduce the service life of sanitary equipment and increase energy consumption.

THE SOLUTION

The solution for domestic and industrial applications is water softening with DOWEX HCR S/S series ion exchange resin filters (reduces scale) regenerated with salt (NaCl). The water softener also efficiently removes iron and manganese.

OPERATION OF FILTERS

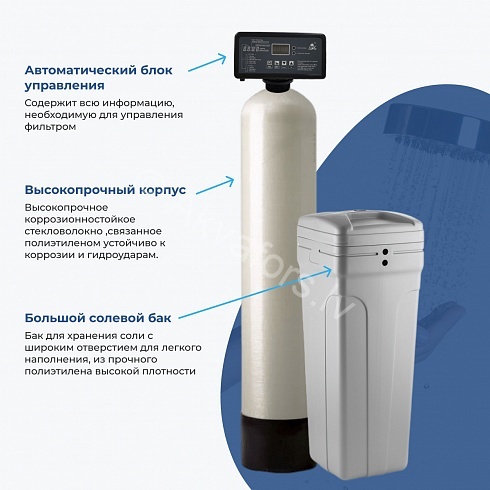

In the purification process, a reagent (NaCl, or salt in tablets - granules ) is used, which is used for the regeneration of the filtering material (resin). The rinse water from this facility can be discharged to biological WWTPs (wastewater treatment plants). The AKVAFORS SF series kit consists of a filter column, a control unit and a salt tank. The filter column is filled with ion exchange resin (cationite), which reduces hardness and filters iron. The control unit performs automatic flushing of the machine. The salt tank is filled with a reagent (NaCl, in salt tablets) for resin regeneration. Depending on the amount of resin and the quality of the water, the machine has a certain amount of water to be cleaned.

FILTER MANAGEMENT

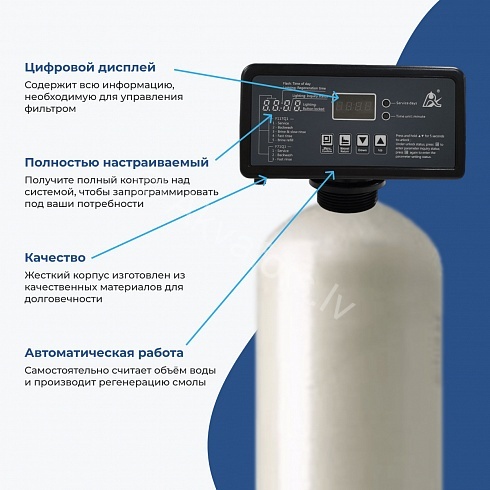

AKVAFORS SF series equipment is equipped with a RUNXIN'' control unit complete with a flow meter, which rinses the filters according to the amount of water consumed. Thanks to the flow meter, flushing will be carried out according to the set amount of water. The flow meter saves rinsing water and salt. The device can be equipped with a bypass line, which allows you to quickly disconnect the device and perform preventive maintenance. In the control unit, all information is saved even if the electricity goes out. The device has many parameters that can be adjusted according to your needs, such as rinsing time, frequency, reagent consumption, etc. It is possible for the device to change the degree of water hardness with a specific control unit housing (additional equipment). The device also performs the function of deironing water, but the iron content must not exceed _____ mg/l.

Technical parameters	Unit of measure	SF 1252
Productivity* Qnom	м3/st	1.8
Amount of rinsing water	LITER	200-250
Minimum intensity of scalorna	м3/st	1.5
Tank size (diameter)	inches	12
Tank volume	LITER	85
A lot of filter material. in the tank	LITER	58
Overall size of the device:
Length (L)	m	0.99
Height (H)	m	0.30
Height (H)	m	1.48
Water add. In/Out/Can	inches	1''
Runxin control unit.		1'' 3/4
Cleaning options		Hardness, iron, manganese, turbidity
Tank material		FRP (Fiberglass)
Filter material		Ion exchange resin DOWEX, quartz sand 1x3 mm, 3x5 mm
Working pressure	bar	2-6
Electrical connection		220W, 50Hz, 1 phase
Electricity consumption	IN	3 In

* Filtration speed 25 BV/h

**Filtration rate 40 BV/h

*** Quantity may double due to changes in incoming water quality

OPERATION OF THE EQUIPMENT

Although salt tablets are used for plant regeneration, the water after the filter can be used for drinking and other necessities of human life. The device requires connection to electricity (one outlet), sewage and incoming/outgoing water pipe with a minimum pressure of 2.5 bar. The device can be placed in wet rooms or in underground shafts made of ropes.

RECOMMENDATIONS:

Before choosing a device, it is recommended to carry out water testing to determine the chemical composition of the water
It is preferable to install a mechanical cleaning filter before the device to ensure a longer service life of the device

AKVAFORS additional equipment options:
