Akvafors MIX 1054 - Universal filters

Universal filter column MIX deferrizes, softens water and at the same time removes calcium ions, which create the "hardness" of water, iron and manganese.
Description ...

815.00 €
Compare products
A complete solution to 5 problems - organics, hardness, iron, manganese, ammonium.
Easy installation and operation.
Environmentally friendly filtration process. Does not degrade water quality.
Automatic purification and regeneration after water consumption.
High quality materials, components.
For private houses, summer houses, guest houses.


APPLICATION

Series devices are organic reduction devices for household use. It is able to purify not only hardness salts, but also completely purify water from organic matter, iron content and hardness. During the purification process, a reagent (NaCl, or salt in tablets) is applied, which is used to regenerate the filter material (resin). The rinse water from this facility can be discharged to biological WWTPs (wastewater treatment plants).

OPERATING PRINCIPLE AND APPLICATION

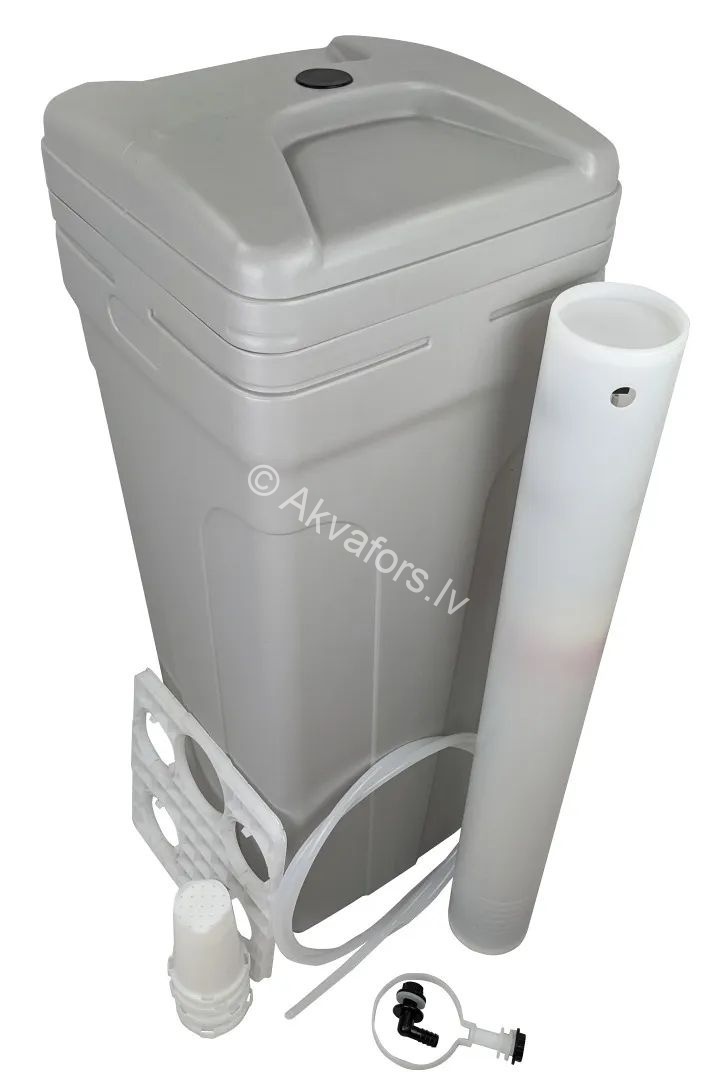

The MIX series kit consists of a filter column, a control unit and a salt tank. The filter column is filled with a mixture of ion exchange resins (cationite and anionite) that reduce organics, ammonium, hardness and filter iron. The control unit performs automatic flushing of the machine. The salt tank is filled with a reagent (NaCl, in salt tablets) for resin regeneration. Depending on the amount of resin and the quality of the water, the machine has a certain amount of water to be cleaned. The device also performs the function of deironing water, but the iron content must not exceed ___ mg/l. Although salt tablets (granules) are used for the regeneration of the device, the water after the filter can be used for drinking and other necessities of human life. The device requires a connection to electricity (one outlet), sewage and incoming/outgoing water pipe with a minimum pressure of 2.5 bar. The device can be placed in wet rooms or in underground shafts made of ropes.

FILTER CONTROL

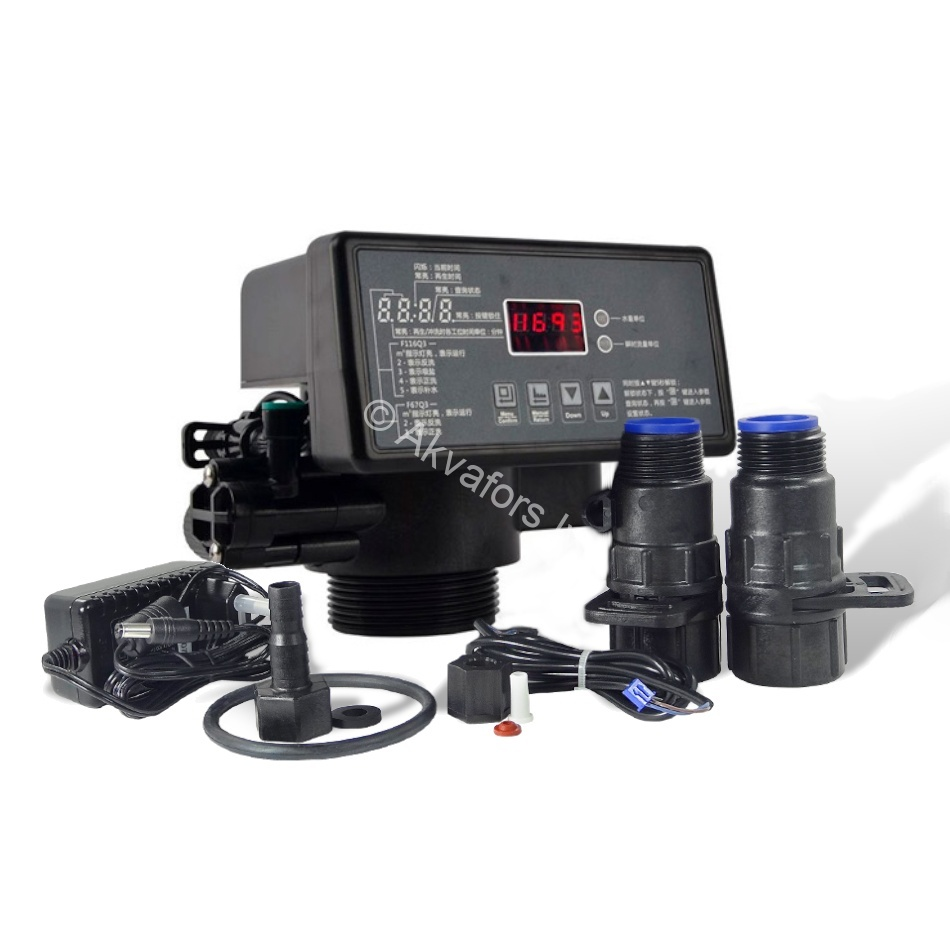

The device has many parameters that can be adjusted according to your needs, such as rinsing time, frequency, reagent consumption, etc. The MIX series machines are equipped with a RUNXIN control unit complete with a flow meter that performs filter rinsing according to the amount of water consumed. Thanks to the flow meter, flushing will be carried out according to the set amount of water. The flow meter saves rinsing water and salt. The device can be equipped with a bypass line, which allows you to quickly disconnect the device and perform preventive maintenance. In the control unit, all information is saved even if the electricity goes out.

RECOMMENDATIONS

It is advisable to install a mechanical purification filter before the unit to ensure a longer service life.


Technical parameters of equipment Unit MIX 1054
Flow rate * Qnom  м3/h  1.0
The amount of water for regeneration  litrs 205
Minimum flushing performance м3/h  1.0
Tank size (diameter)   inches 10
Tank volume   litrs 64
The amount of filtration media  litrs 40
Dimensions:
Length  m 0.89
Width m 0.28
Height m 1.53
Water - drain connection inches 1''
Runxin control valve   1''
Filtration   Hardness, iron
Tank material    FRP (fiberglass)
Filtration media   Ion exchange resins DOWEX(Italia), silica sand 1x3mm, 3x5 mm
Operating pressure  bar 2-6
Electric Connection    220W, 50Hz, 1 faza
Electricity consumption W 3 W
